HD 1080P Video Conference Lub Koob Yees Duab Rau Kev Kawm Nyob deb
Qauv: TEVO-VHD4K
Tsis siv neeg lub koob yees duab tswj
1/2.5 "CMOS Sensor (SONY IMX274)
4k (3840X2160) Ultra HD video daws teeb meem
Preset: 9 ntawm IR chaw taws teeb chaw taws teeb (255 ntawm RS232)
Nruab nrog IR chaw taws teeb tswj, yooj yim rau kev khiav lag luam
High precise motor positioning (Yias: 340 degree, qaij: 120 degree)
UVC/plug-and-play ntawm MJPEG ntawm USB, 4K @ 30FPS
Txhawb nqa qab nthab, phab ntsa mount thiab tripod mount
138 degrees Qhov dav ntawm qhov pom tsis muaj kev cuam tshuam video
Quiet & smooth mechanism txav, raug & ceev ceev
Txhawb Visca, Pelco-P & Pelco-D raws tu qauv, RS232 / RS485 Lub Koob Yees Duab Tswj
Compatible nrog feem ntau ua video conferencing software thiab platform
- Ceev ceev
- Kev Muaj Peev Xwm Zoo
- 24/7 Cov Neeg Siv Khoom
Khoom Taw qhia

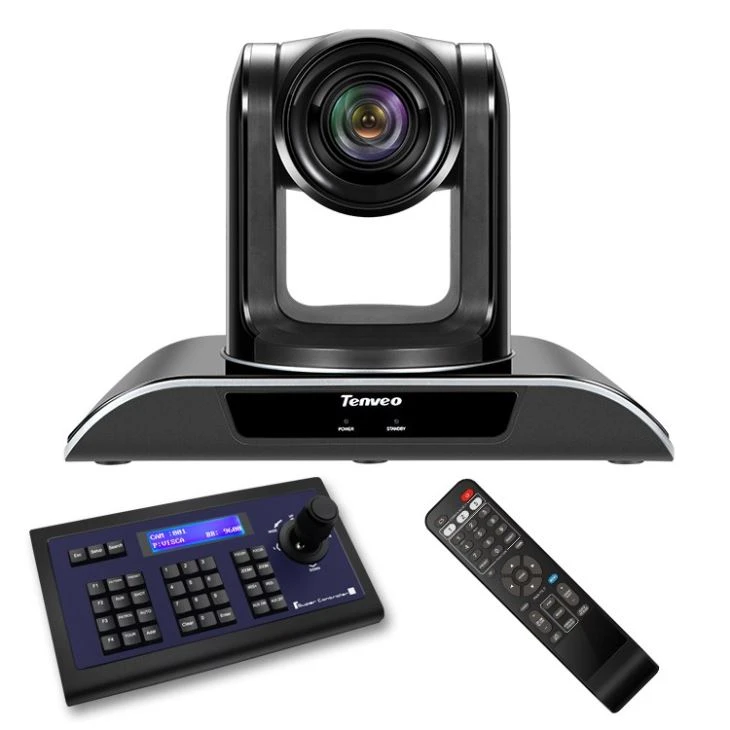

HD 1080P video sablaj lub koob yees duab rau kev kawm deb
TEVO-VHD4K los nrog Ultra-HD imaging system, Rally muab cov yeeb yaj kiab ntse ntse, xim zoo nkauj, thiab qhov tseeb qhov tseeb tshwj xeeb ntawm kev daws teeb meem txog 4K. Lub koob yees duab no tau txais 1/2.5 "CMOS (SONY IMX274), 8.29 zoo mage pixel, 138 degree super-wide field of view, kom nthuav dav lub ntsej muag thiab ua rau lub ntsej muag zoo nkauj, txawm tias nyob hauv qhov tsaus ntuj lossis backlit. VHD4K ntsib nrog daim ntawv thov rau Ultra HD kaw thiab streaming, video conferencing, thiab tshaj tawm uas txhawb USB koob yees duab.
Specification
Yam khoom No. | TEVO-VHD 4K |
Duab Sensor | 1/2.5 "CMOS (SONY IMX274) |
Muaj txiaj ntsig pixel | 8.29 mega pixel (16:9) |
Kab rov tav daws teeb meem | 4K（3840 x 2160）,2K（2560*1440）,1080P（1920*1080） |
Teeb liab txheem | N TSC/P AL |
Lens | Kho kom pom tseeb 2.1mm wide-angle lens |
Field of View: | Kho kom pom tseeb, kab pheeb ces kaum: 138 degree, Kab rov tav: 120 degree, Vertical: 100 degree |
SNR ratio | Ntau dua lossis sib npaug li 48dB |
Preset txoj hauj lwm | Chaw taws teeb tswj txhawb 9 presets, |
Pan txav ntau | 340 degree (Max Ceev 80 degree / S) |
Tilt txav ntau | 120 degree (Max Ceev 60 degree / S) |
Tswj lub davhlau ya nyob twg | RS -232, RS485 |
Tswj raws tu qauv | VISCA, PELCO-D, PELCO-P (RS-232, RS485) |
HD Video tso zis | USB ntsaws thiab ua si |
Ua haujlwm kub | -10 degree -50 degree |
Ua haujlwm av noo | -20 degree -60 degree |
Baud tus nqi | 2400/4800/9600/19200bps |
Decoder | Ua-hauv |
Chaw nyob Set | 1~255 |
Kev teeb tsa | Txhawb desktop, Tripod, Phab ntsa mount thiab Qab nthab mount |
Fais fab mov | DC 12V / 2A |
Hwj chim | 12W |
Qhov hnyav | 1.46kg / 2.8kg (ua ntej / tom qab ntim) |
Loj | 260 * 175 * 180 hli / 296 * 225 * 218mm (ua ntej / tom qab ntim) |
Cov khoom siv | DC 12V Fais fab adaptor, IR chaw taws teeb tswj, Qab nthab brackets & screws, Phau ntawv, RS -232C cable, USB cable |
