20x optical zoom full hd usb ptz koob yees duab nqi
Product Overview:
Khoom No.: TEVO-NV20A
20x optical zoom
Sleek thiab ntse tsim
Plug & Ua Si USB / HDMI / SDI Txuas Txuas
Crystal ntshiab HD 1080P duab zoo
Muaj tseeb, du thiab ntsiag to PTZ Movement
Preset: 9 ntawm IR chaw taws teeb chaw (256 ntawm RS232)
Superior zoo nrog tag nrho iav Lens Khoom
51.3 degree qhov dav ntawm qhov pom tsis muaj kev cuam tshuam video
1/3 nti zoo, 2.1MEGA PIXEL (16:9) CMOS sensor
Txhawb nqa qab nthab, phab ntsa mount thiab tripod mount (Rov qab mountable)
2D thiab 3D NR rau cov yeeb yaj kiab zoo tshaj plaws hauv cov teeb pom kev sib txawv
Txhawb Visca, Pelco-P, thiab Pelco-D raws tu qauv, RS232 / RS485 Lub Koob Yees Duab Tswj
Tau tshaj nrog feem ntau ua video conferencing software thiab platform
- Ceev ceev
- Kev Muaj Peev Xwm Zoo
- 24/7 Cov Neeg Siv Khoom
Khoom Taw qhia

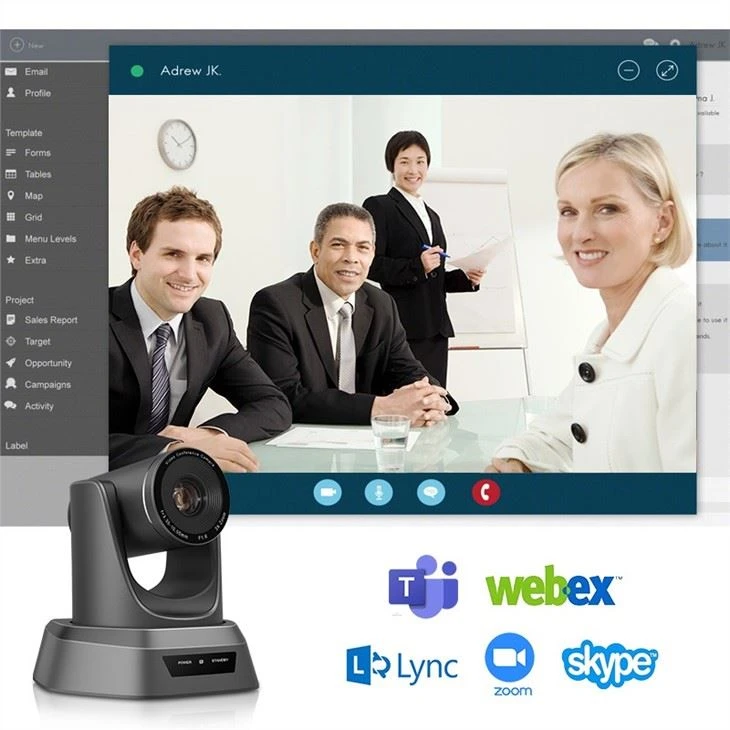

20x optical zoom 3G-SDI & HDMI PTZ video koob yees duab
Tiv tauj peb:
SZ Tenveo Video Technology Co., Ltd
Ntxiv: B-8th pem teb, Fukang Keji Mansion, Yousong Road, Fukang Community, Longhua Dist., ShenZhen, Suav teb
Email:Sales09@tenveo.com
Tel/Wechat:+86 135 5233 5495
Whatsapp: +86 134 7469 0572
Skype: nyob:956467630_1
Lub Vev Xaib:www.tenveo-video-conference.com
Khoom Parameter:
Khoom No. | TEVO-NV20A |
Duab Sensor | 1/3 ntiHD ColorCMOS |
Muaj txiaj ntsig pixel | 2.38mega pixel(16:9) |
Kab rov tav daws teeb meem | 1080P60/50/30/25, 1080i60/50, 720P60/50 |
Teeb liab txheem | NTSC/PAL |
Zoom | 20x optical zoom |
Yam tsawg kawg nkaus luminance | {{0}}.5Lux ntawm F2.0 |
Focal ntev | F=5.5mm (dav)-110(tele) |
Kab rov tav | Ze-kawg54.7degree-Far-kawg3.3degree |
Tau txais kev tswj hwm | Auto |
Ua kom pom tseeb | Auto |
Dawb tshuav | Auto |
SNRpiv | Ntau tshaj lossis sib npaug li 50dB |
Shutter ceev | 8 mus rau 1/10000s (auto) |
Preset txoj hauj lwm | IR chaw taws teeb tswj txhawb 9 presets, PELCO raws tu qauv txhawb 256 presets |
Pan / Tilt txav ntau | Pan:±175degree(max ceev 80 degree / S), qaij: -35degree~﹢55degree(max ceev 60 degree / S) |
Tswj lub davhlau ya nyob twg | USB,RS -232, RS485 |
Tswj raws tu qauv | VISCA, PELCO-D, PELCO-P (RS -232, RS485 ua) |
Video tso zis | USB, HDMI, SDI |
Video Compression Format | MJPG |
Txo suab nrov | 2D/3D |
Ua haujlwm kub | -10 degree -~50 degree |
Cia kub | -20 degree ~ 60 degree |
Baud tus nqi | 38400/9600bps |
Decoder | Ua-hauv |
Chaw nyob teeb | 1~256 |
Kev teeb tsa | Txhawb desktop,Tripod, Wtag nrho mount thiabCib mount |
Fais fab mov | DC12V / 2A |
Kev siv fais fab | 12 W |
Net nyhav / tag nrho qhov hnyav | 1.5kg / 2.85g |
Dimension (LXWXH) | 260 * 175 * 180mm / 296 * 255 * 218mm (ua ntej/ tom qab packing) |
Khoom siv | DC 12 V Power adaptor, IR chaw taws teeb tswj,Mtxhua xyoo, USB2.0 kab,Qab nthab brackets & screws. |
Cim npe nrov: 20x optical zoom full hd usb ptz koob yees duab nqe, Tuam Tshoj, manufacturers, lag luam wholesale, nqe, luv nqi, ua nyob rau hauv Suav teb
